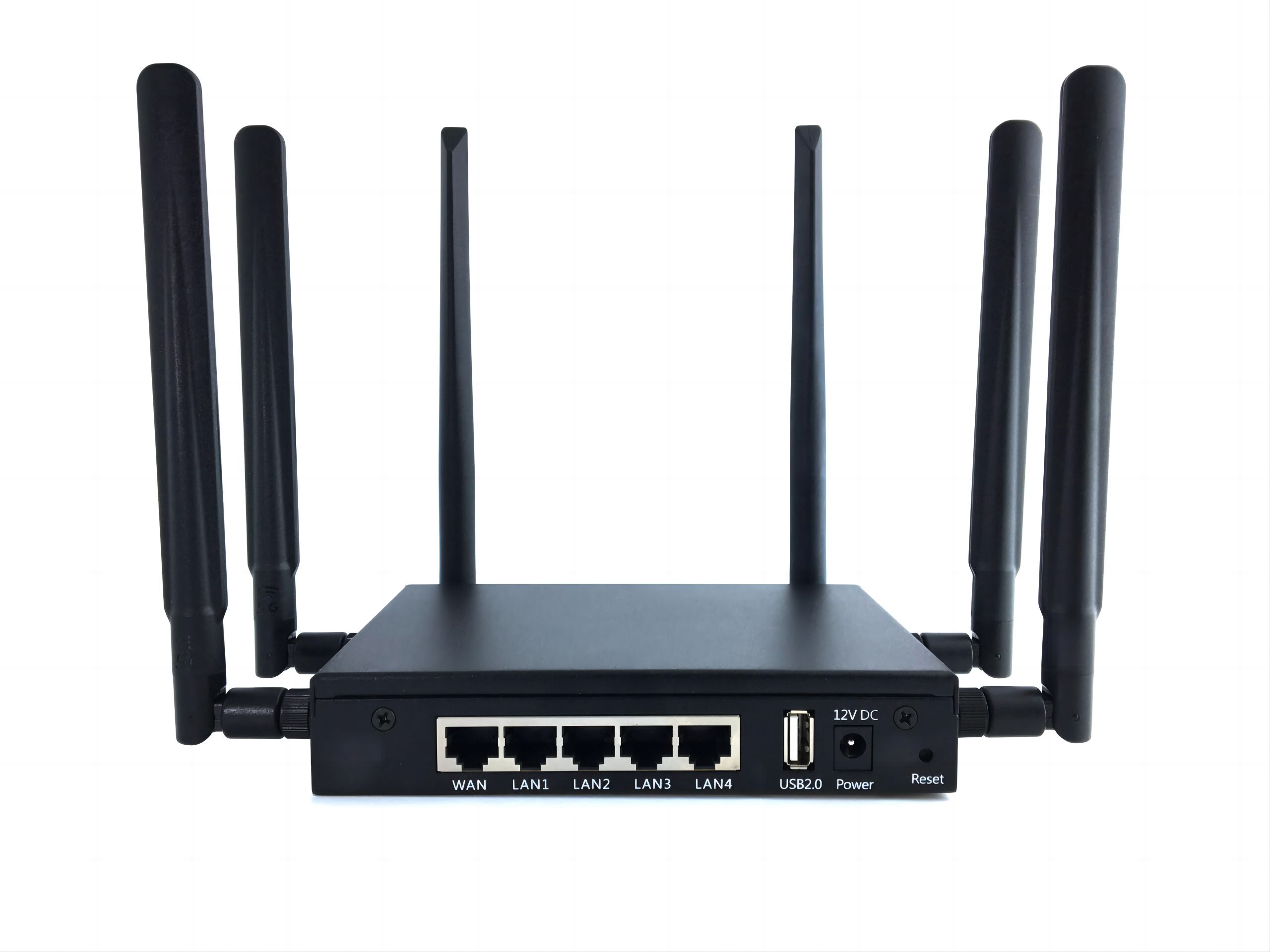

AX3000 Dual Band Gigabit Wi-Fi 6 Router_U7981-01-AX
Product Details:
Specifications
| Chipset | CPU: MTK MT7981 dual-core ARM® Cortex-A53 WIFI6: MT7976C 5 Giga-PORT Switch: MT7531A |
| System Memory | Default DDR3 256Mbyte （Optional 512Mbyte） |
Nor Flash EMMC NAND Flash | Default 16Mbyte （Optional for 8/32/64Mbyte） Optional 8Gbyte EMMC Optional 128Mbyte/256Mbyte NAND Flash |
| Expansion | 1x 4G/5G Module with a SIM card 1x USB TYPEA connector for power only |
| Wireless | MU-MIMO 802.11a/b/g/n/ac/ax WiFi 6 2.4GHz 2T2R 576Mbps, B mode@23dBm(Max) 5.8GHz 3T3R 2.4Gbps, A mode@23dBm(Max) |
| Wired Interface | 5x Gigabit 1*WAN+4*LAN |
| Reset Button | 1x Factory Restore Button （GPIO） |
| DC Power | 1x DC Jack Connector （Default 12V@1A） |
| Power Consumption | 9 W(Max),12V@1A without Expansion 24W(Max), 12V@2A in full range |
| Software | MTK OpenWrt which includes Uboot, Kernel, Driver and Tool Chain |
| Environmental | Temperature: Operating: 0ºC to 50ºC, Storage: -40ºC to 90ºC Humidity (non-condensing): Operating: 5% to 95%, Storage: Max. 95% |
| Case | Material: Iron, Dimensions: 155x111x30mm |

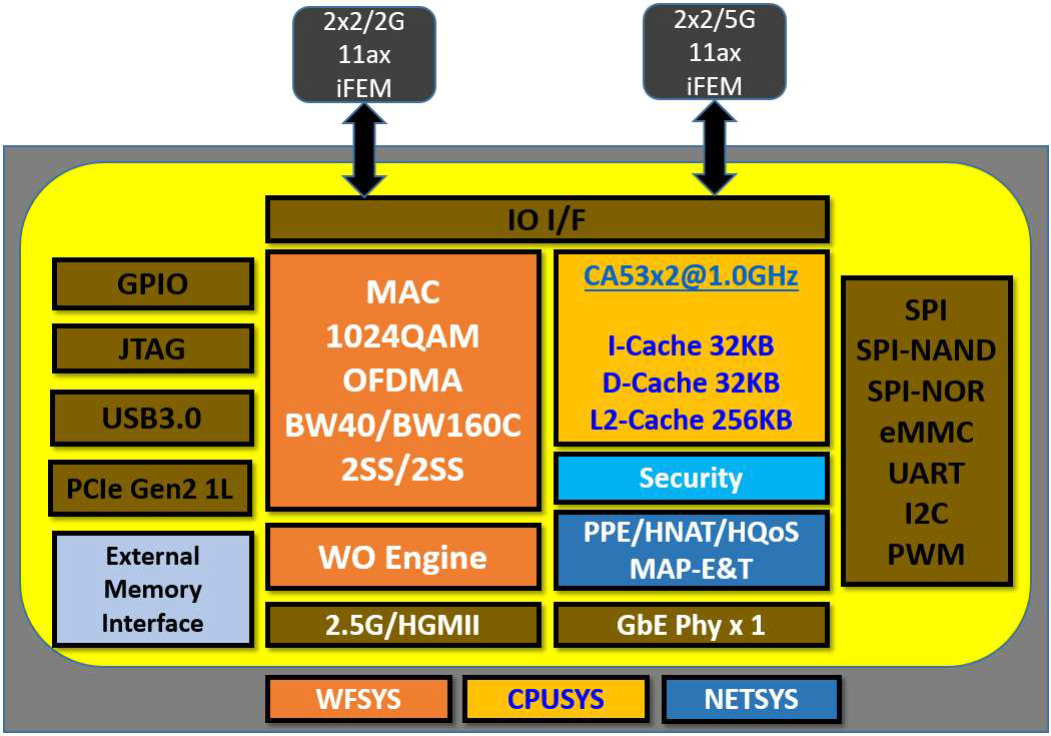

MT7981 Block Diagram

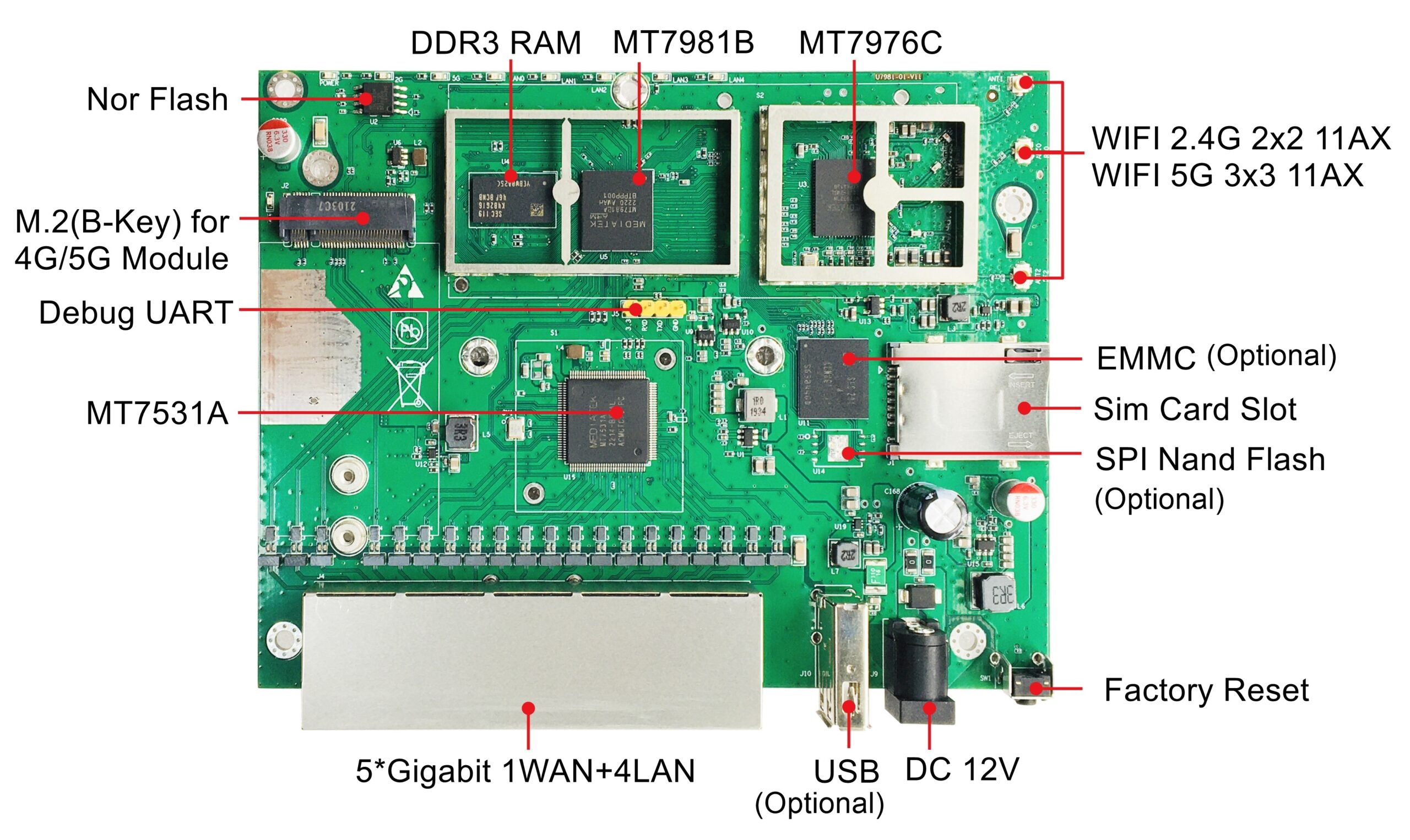

Board Block Diagram
Customization Options
Cnebay have engaged in providing global customers with professional ODM/OEM service of customized stable and
cost-effective electronic products. We can customize total production for the customer including Chassis, Hardware,
Software and Package as below customization options for this product. Contact us at cnebaysales@gmail.com for more detailed info.
| Name | Customization Comments | Cnebay Customization |
| Memory | Change to 512Mbyte DDR3 Change to 512Mbyte/1Gbyte/2Gbyte DDR4 | Supported |
| Nor Flash | Change to 8/32/64Mbyte | Supported |
| EMMC | Change to 8Gbyte EMMC | Supported |
| NAND Flash | Change to 128Mbyte/256Mbyte NAND Flash | Supported |
| 4G/5G Module | Select the right M2 4G/5G module for your application | Supported |
| Case | Select the different case material for your application | Supported |
Ordering Information
| Models | comments |
| U7981-01-AX | 16Mbyte Nor Flash and 256Mbyte DDR3 RAM |

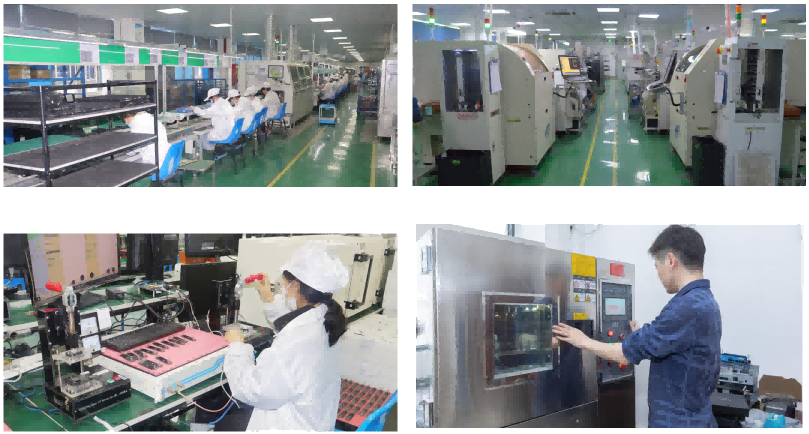

we are Manufacturer & Network Solution Supplier
