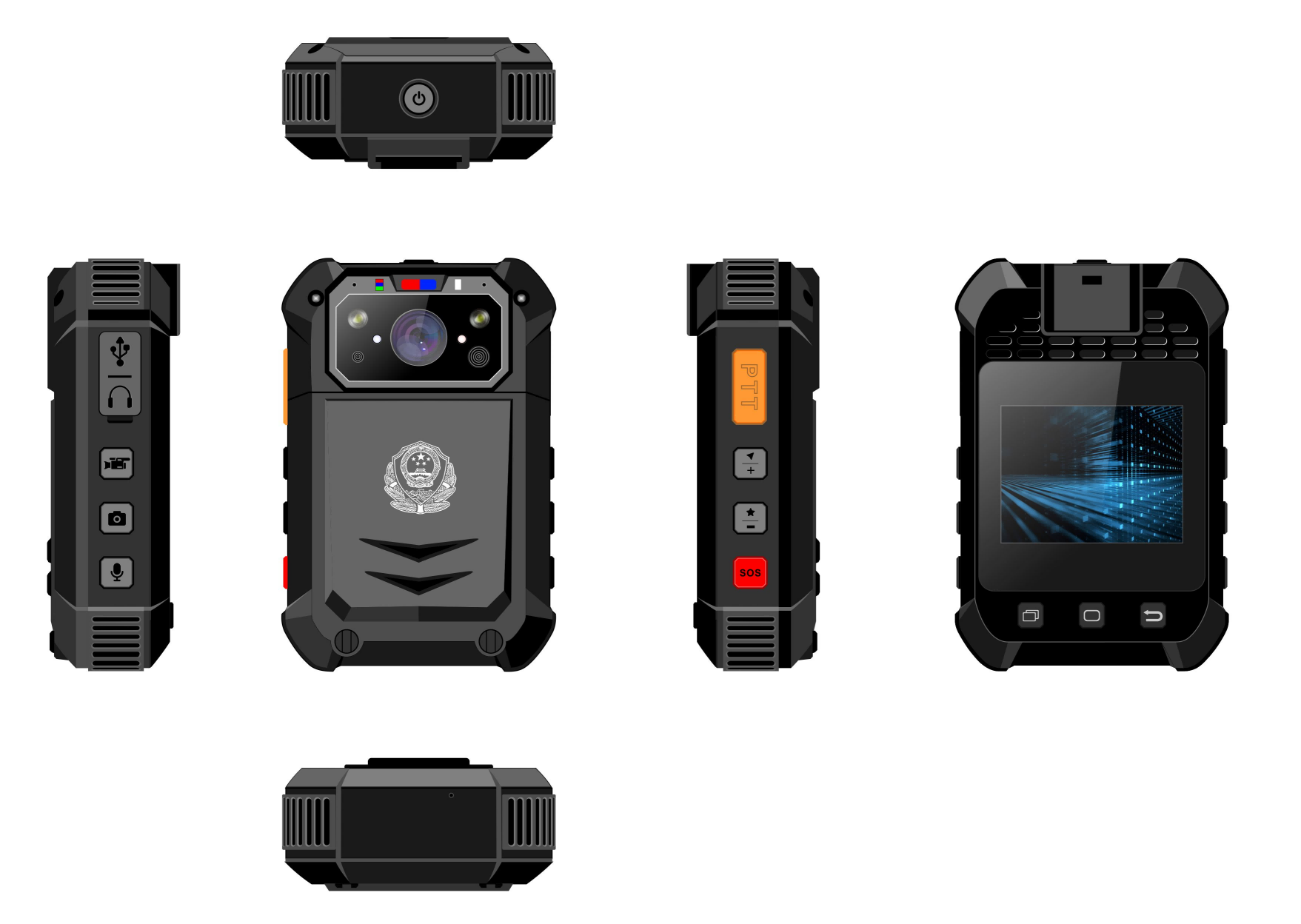

Product specification:

Platform: sc9863a

Operating system: Android

Frequency band:

TDD: BAND38BAND39 BAND40 BAND41

FDD: BAND1 BAND3 BAND5 BAND8

WCDMA:BAND1BAND8

GSM:BAND3BAND8

Memory: 2gb+32gb, supporting TF Card

Display screen: 2.0 inches, supporting touch screen g+f

Law Enforcement Camera:4mpFF,ov4689(IR-cut)

Lighting support:

flash lamp

Red and blue warning lights: one red and one blue light

Infrared lamp

Laser positioning lamp

Signal indicator

Positioning: gps&bd

Voice intercom: support public network intercom

Horn:2535

Key:

On / off key: long press on / off, short press standby / wake up

Video key: long press to start recording, and long press to end recording

Photo key: long press this key to take photos, and then long press it to exit

Recording key: long press to start recording, and long press to end recording

Intercom key: press and hold PTT key to talk, release and send

Laser positioning key / volume +: long press the laser positioning light on, long press the light off, and short press to adjust the volume

Key to highlight - Volume -: the law enforcement camera starts, long press to highlight the video, short press to adjust the volume

Emergency alarm key: long press SOS to alarm

Battery:2400mAh(low temperature battery, built-in removable)

Backup battery: 50mah (built-in non removable)

Video size:

Full high definition:1920x1080（30fps）

High definition:1280x720（30fps）

Standard definition:640x480（30fps）

D1:720X480（30FPS）

Image compression format: h.265 encoding and decoding

Video format: mp4

Recording format: AAC

Light sensor: support

Sim: single nano SIM card

USB：MICRO USB

Earphone: 3.5 earphone holder

Antenna: main antenna / diversity antenna / functional antenna: Beidou /gps/bt, WiFi

Safety regulations: contact ±6kV, air ± 8Kv

Protection grade:IP68, drop 2 meters

Charging time: 1.5 hours

Working time: it can support the law enforcement recorder to record continuously for 5 hours

Other functions: Bluetooth/Hall/Wifi/OTG/Mic

Size:94.7*62.6*27.5mm

Weight: 180g (excluding peripherals)

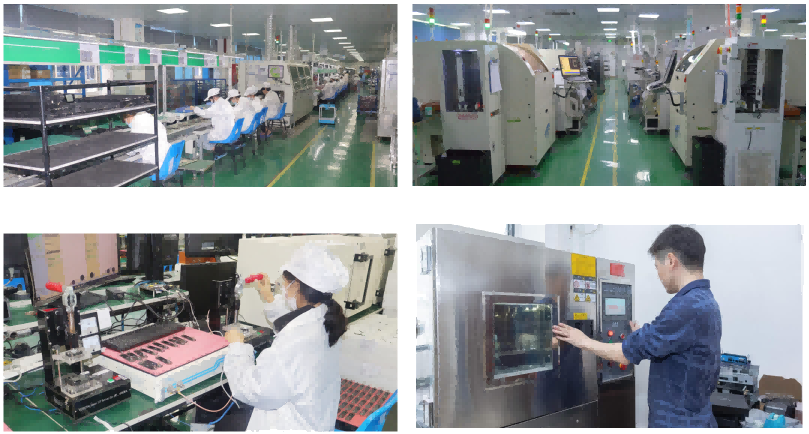

We are manufacturer and provider of communication network solutions
