AX1800 Dual Band Gigabit AP_U7621-08

中文 English

Product Details:

Specifications

Chipset	CPU: MTK MT7621A dual-core MIPS1004K （880MHz） WIFI6:MTK7975D+MTK7905D
System Memory	Default DDR3 256Mbyte
Nor Flash	Default 16Mbyte
Wireless	MU-MIMO 802.11a/b/g/n/ac/ax WiFi6 2.4GHz 2T2R 573.5Mbps, B mode@20dBm (Max) 5.8GHz 2T2R 1201Mbps, A mode@19dBm (Max)
Wired Interface	1* WAN Giga Ethernet RJ45 Port with POE PD（Support 802.3at & af standard) 1* LAN Giga Ethernet RJ45 Port
Reset Button	1x Factory Restore Button (GPIO)
DC Power	1x DC Jack Connector (Default 12V@1A)
Power Consumption	10 W(Max)
Software	MTK OpenWrt which includes Uboot, Kernel, Driver and Tool Chain
Environmental	Temperature: Operating: 0ºC to 50ºC, Storage: -40ºC to 90ºC Humidity (non-condensing): Operating: 5% to 95%, Storage: Max. 95%

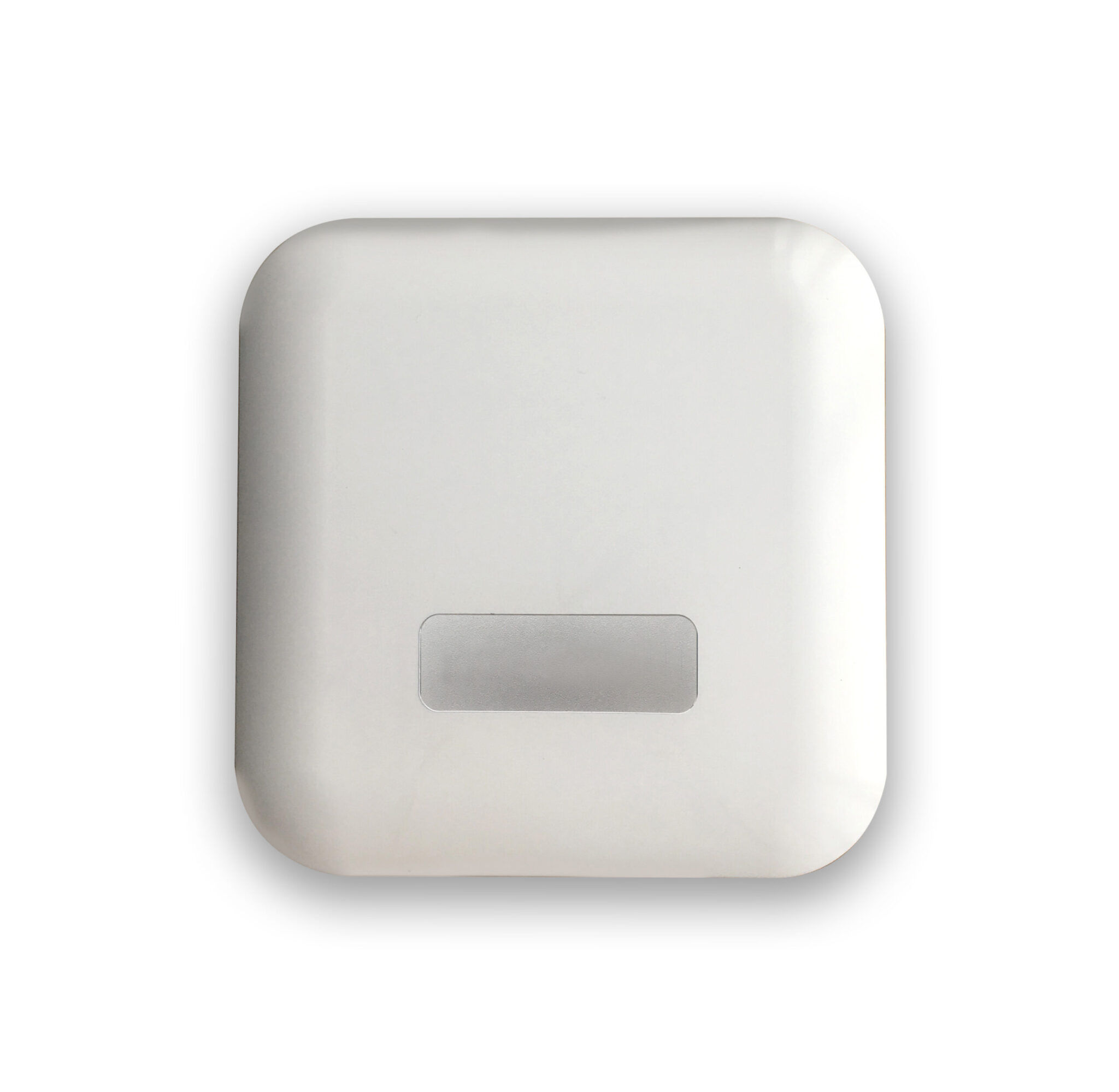

Case	Material: Plastic Dimensions: 168x168x40mm (±2mm)

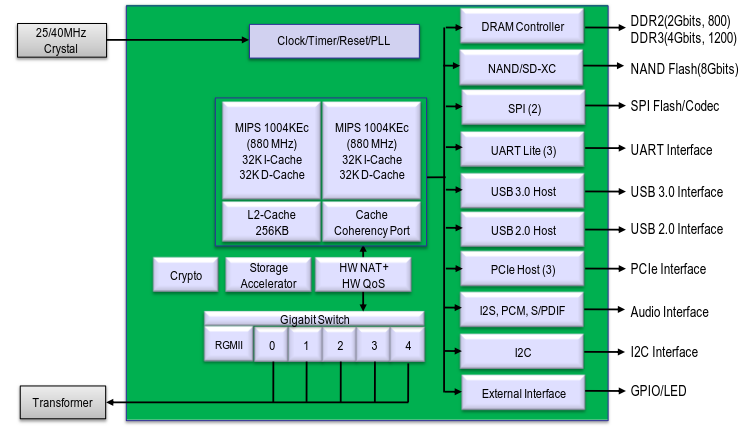

MT7621A Block Diagram

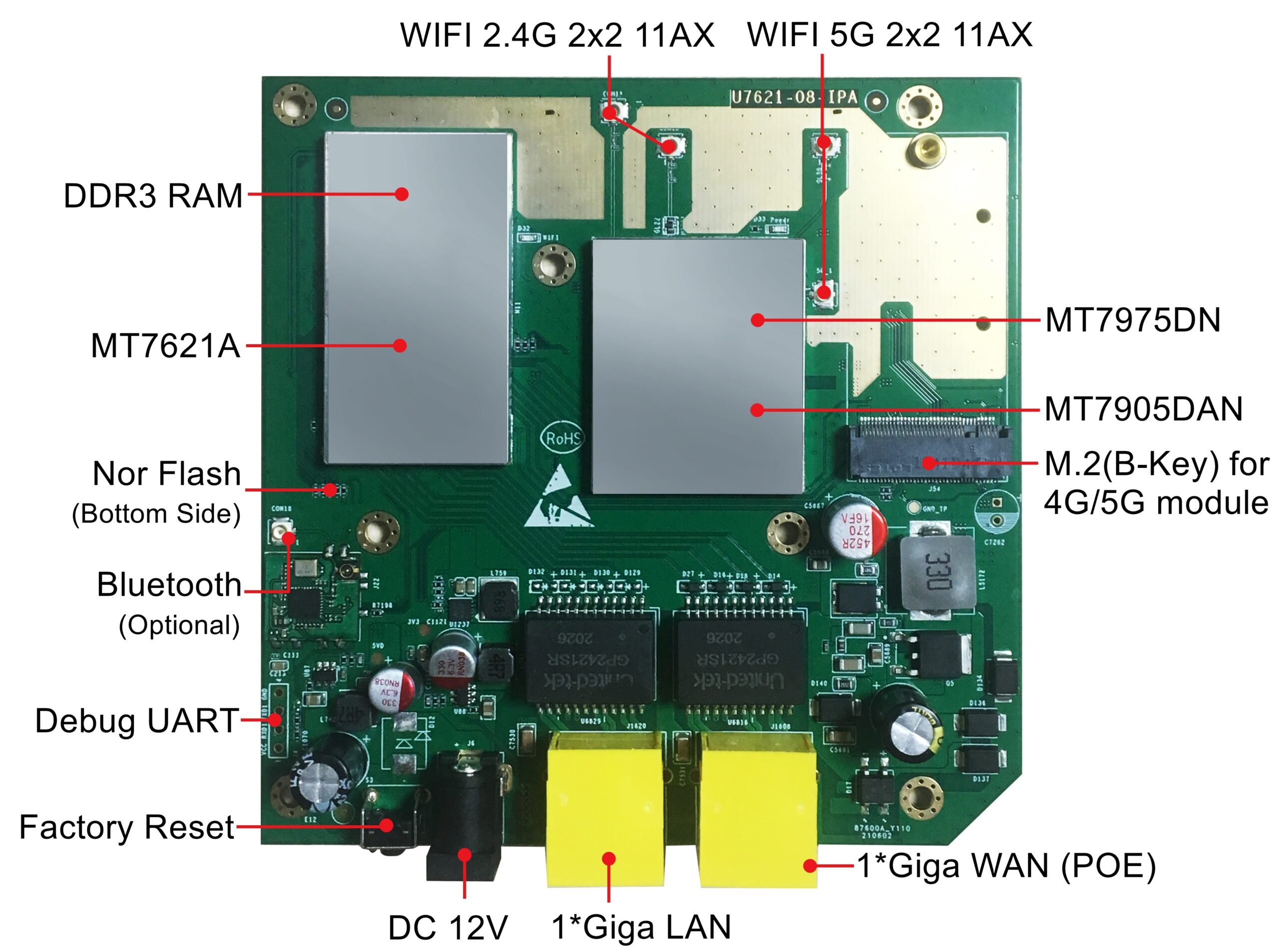

Board Block Diagram

Customization Options

Cnebay have engaged in providing global customers with professional ODM/OEM service of customized stable and

cost-effective electronic products. We can customize total production for the customer including Chassis, Hardware,

Software and Package as below customization options for this product. Contact us at cnebaysales@gmail.com for more detailed info.

Name	Customization Comments	Cnebay Customization
Memory	Change to 512Mbyte DDR3	Supported
Nor Flash	Change to 8/32/64Mbyte	Supported
Nor Flash	Select the right M2 4G/5G module for your application	Supported
Case	Select the different case material for your application	Supported

Ordering Information

Models	Comments
U7621-08	16Mbyte Nor Flash and 256Mbyte DDR3 RAM

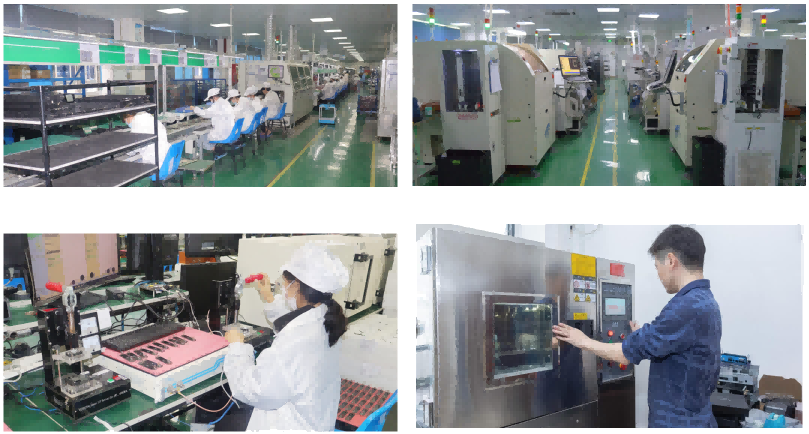

We are manufacturer and provider of communication network solutions
