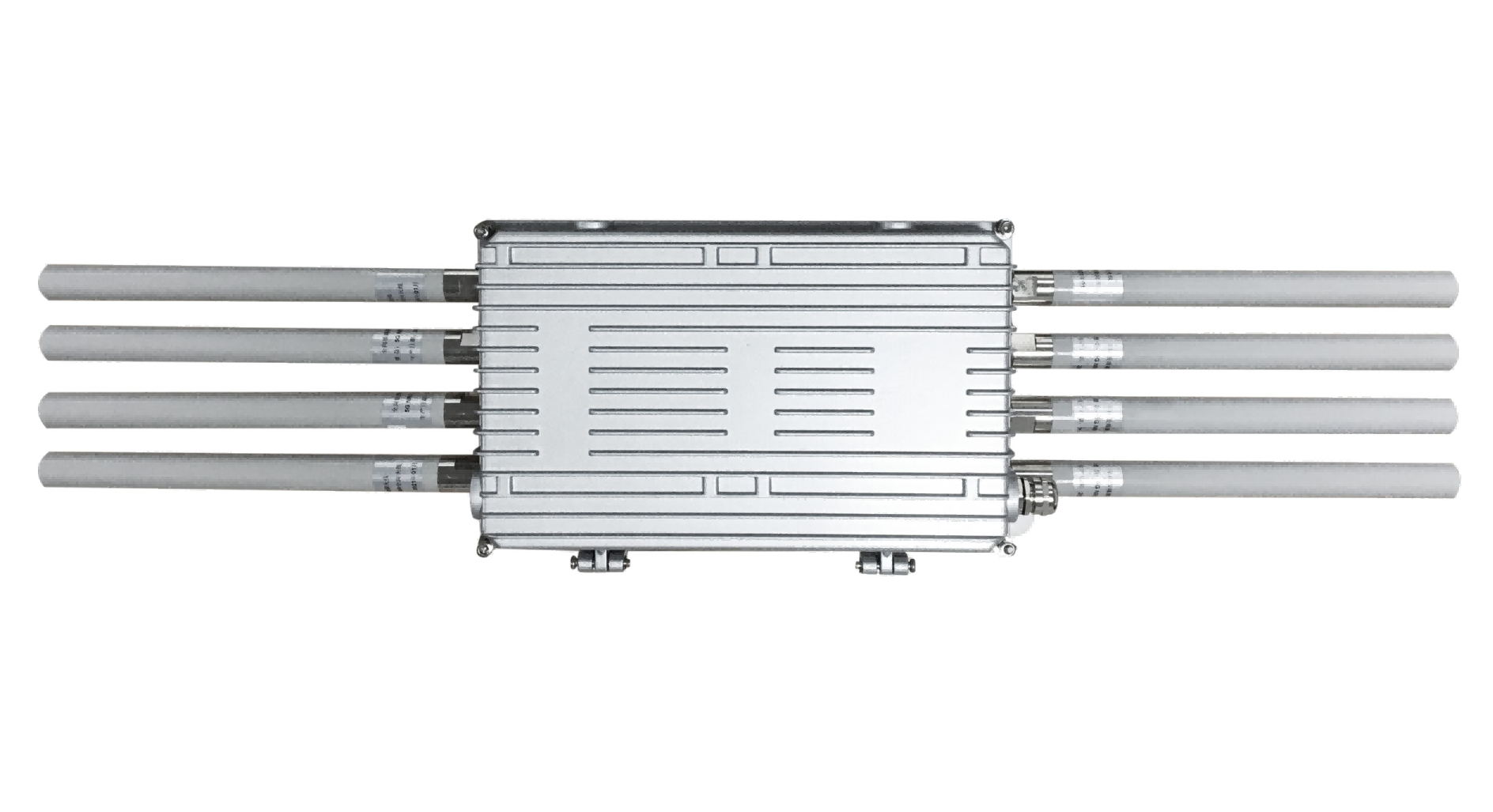

AX3000 Dual Band Gigabit Wi-Fi 6 Router with Two 10G SFP Ports_U8071-36
Product Details:
Specifications
| Chipset | CPU: Qualcomm IPQ8071（Optional IPQ8072/IPQ8070） 2.4GHz AX Chip: Qualcomm 2X2; SINGLE-BAND;802.11AX QCN5024 5GHz AX Chip: Qualcomm 4X4; SINGLE-BAND;802.11AX QCN5054 Ethernet 5 Giga port switch: Qualcomm QCA8075 Power management: PMP8074 |
| System Memory | Default DDR3-2400 512Mbyte （Optional 256Mbyte） |
| NAND Flash | Default NAND Flash 256Mbyte （Optional 128Mbyte） |
| Expansion | 1x 5G/LTE Module with a SIM card 1x 10G SFP Slot |
| Wireless | MU-MIMO 802.11a/b/g/n/ac/ax WiFi 6 2.4GHz 2T2R 600Mbps, B mode@25dBm(Max) 5.8GHz 4T4R 2400Mbps, A mode@24dBm(Max) |
| Wired Interface | 1* WAN Giga with POE PD 25W Support (802.3at & af standard) 1* LAN Giga Ethernet RJ45 Port |
| Reset Button | 1x Factory Restore Button （GPIO） |
| DC Power | 1x DC Jack Connector （Default 12V@2A） |
| Power Consumption | 20W（Max),12V@2A in full range |
| Environmental | Temperature: Operating:0ºC to 50ºC, Storage:-40ºC to 90ºC Humidity (non-condensing): Operating:5%to 95%, Storage: Max. 95% |
| Software | Qualcomm QSDK which includes Uboot, Kernel and Tool Chain |
| Case | Material: Aluminium Alloy, Dimensions:304*184*88mm |

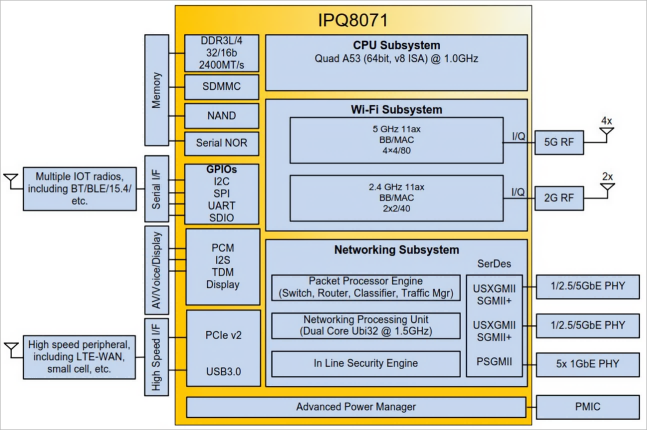

IPQ8071 Block Diagram

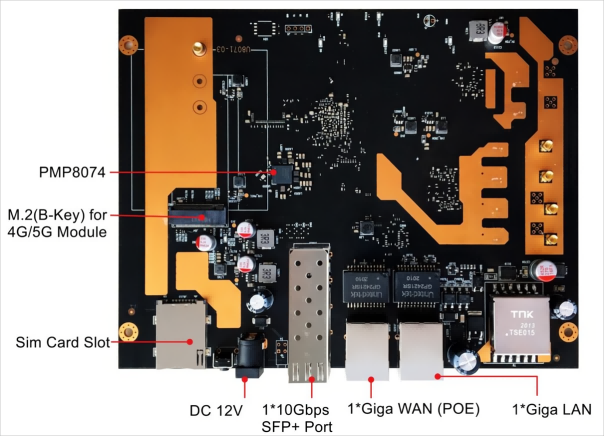

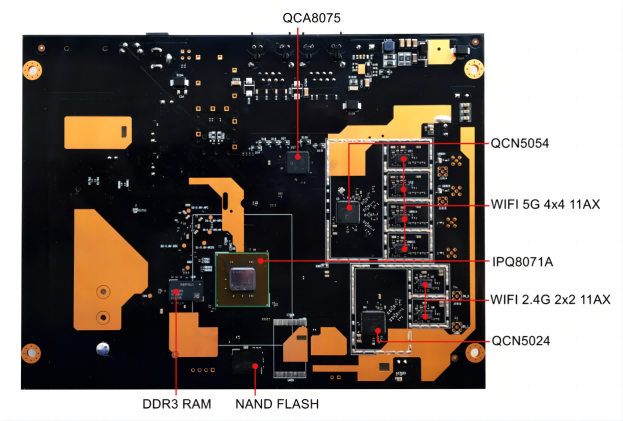

Board Block Diagram
Customization Options
Cnebay have engaged in providing global customers with professional ODM/OEM service of customized stable and
cost-effective electronic products. We can customize total production for the customer including Chassis, Hardware,
Software and Package as below customization options for this product. Contact us at cnebaysales@gmail.com for more detailed info.
| Name | Customization Comments | Cnebay Customization |
| Memory | Change to 256Mbyte DDR3 | Supported |
| NAND Flash | Change to 128Mbyte NAND | Supported |
| 5G/LTE Module | Select the right M2 5G/LTE module for your application | Supported |
| Case | Select the different case material for your application | Supported |
Ordering Information
| Models | Comments |
| U8071-36 | 256Mbyte NAND Flash and 512Mbyte DDR3 RAM |

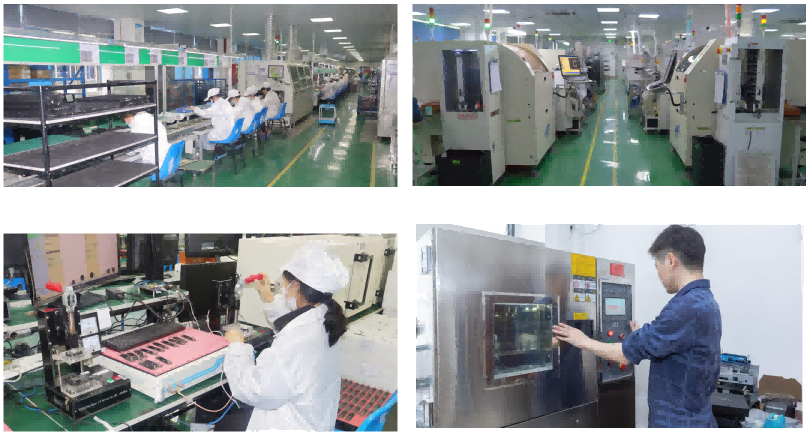

we are Manufacturer & Network Solution Supplier
