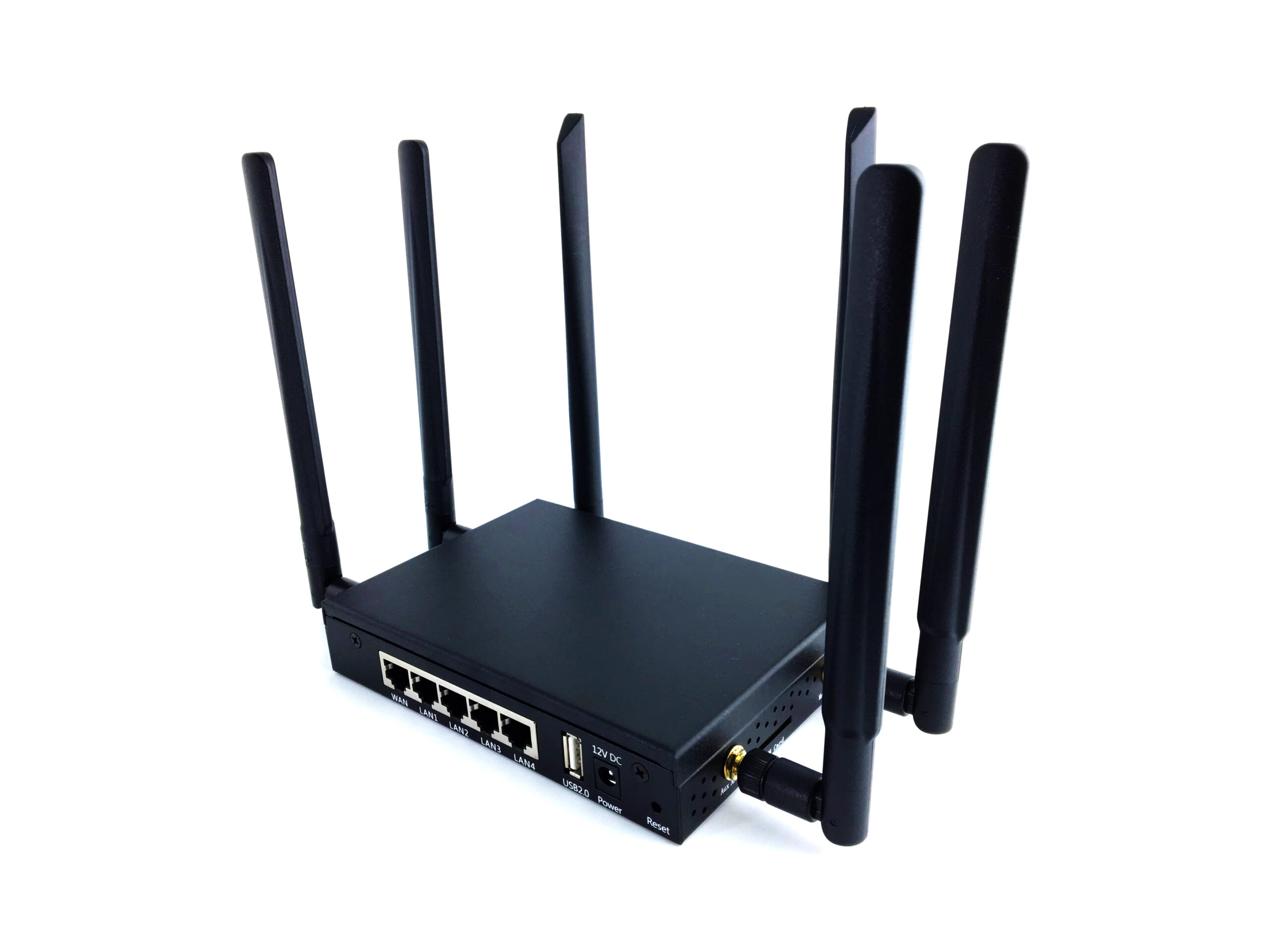

Product Details:

    Specifications

Chipset	CPU: Qualcomm IPQ5018 and Qualcomm QCN6102 and QCA8337N
System Memory	Default DDR3 512Mbyte (Optional 256Mbyte/1Gbyte)
EMMC/NAND Flash	Default 128Mbyte NAND (Optional 256Mbyte) Optional EMMC( 8~128Gbyte)
Expansion	1x 4G/5G Module with a SIM card 1x USB TYPEA connector for power only
Wireless	2×2 MU-MIMO 802.11b/g/n/ac/ax WiFi 6 2.4GHz 2T2R 576Mbps, B mode@22dBm (Max) 5.8GHz 2T2R 2.4Gbps, A mode@19dBm (Max)
Wired Interface	5x Gigabit 1*WAN+4*LAN
Reset Button	1x Factory Restore Button (GPIO)
DC Power	1x DC Jack Connector (Default 12V@1A)
Power Consumption	9.5 W（Max）,12V@1A without Expansion 24W（Max）, 12V@2A in full range
Software	Qualcomm QSDK which includes Uboot, Kernel, Driver and Tool Chain Latest Openwrt (In Development)
Environmental	Temperature: Operating:0ºC to 50ºC, Storage: -40ºC to 90ºC Humidity (non-condensing): Operating: 5% to 95%, Storage: Max. 95%
Case	Material: Iron, Dimensions: 155x111x30mm

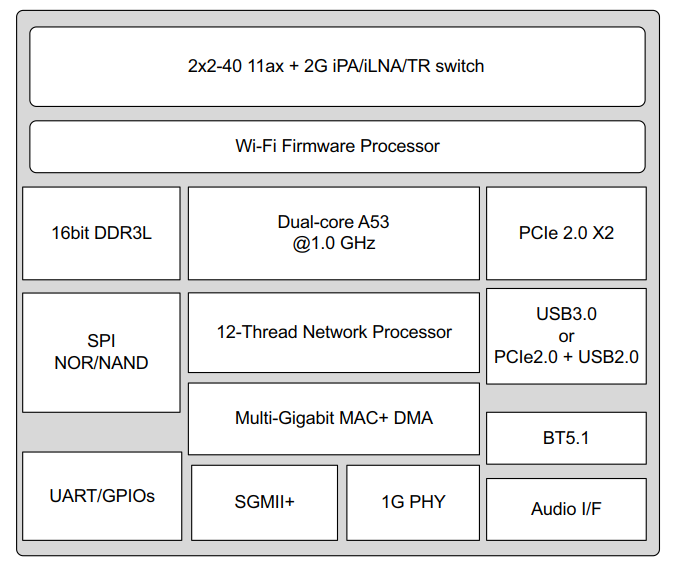

IPQ5018 Block Diagram

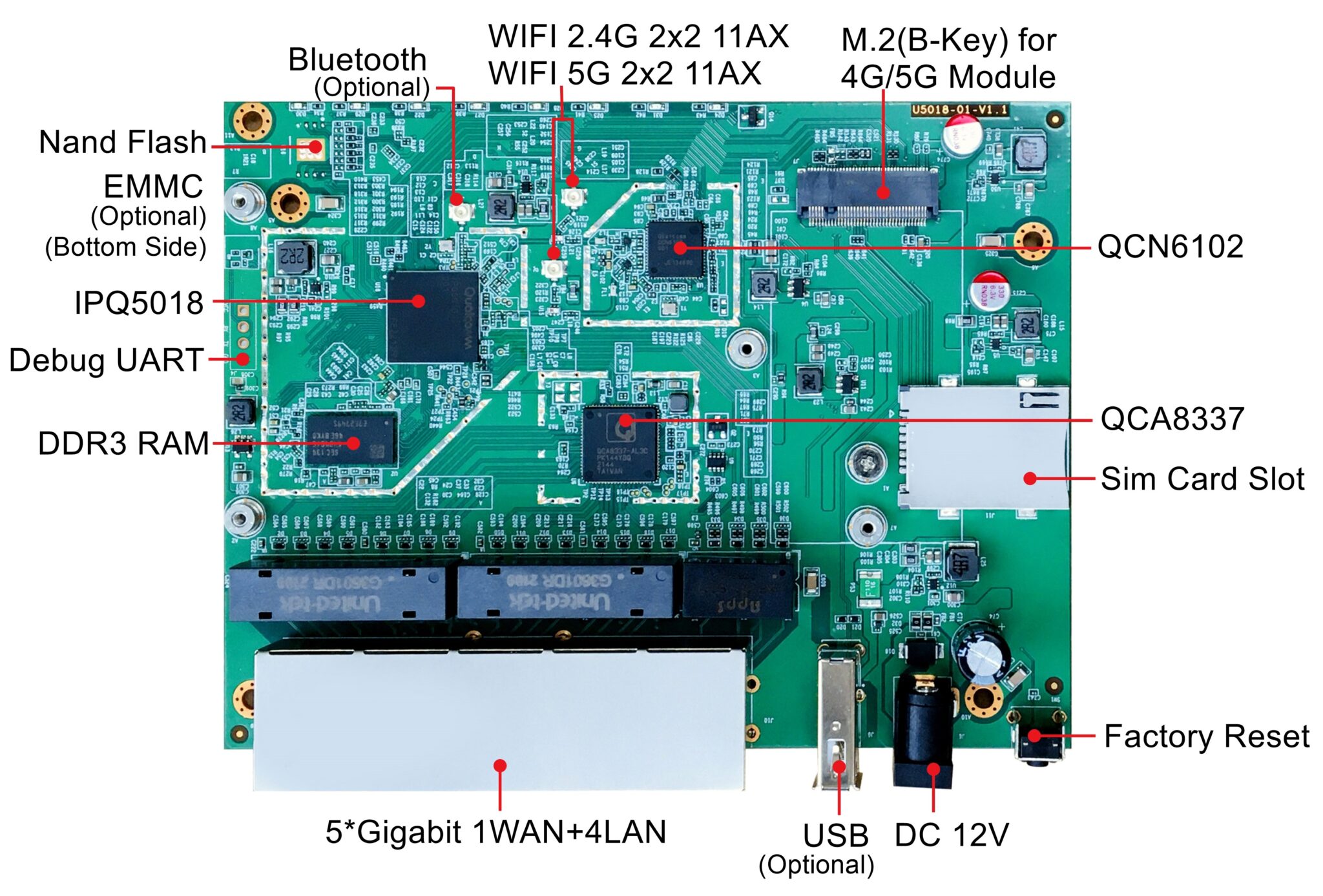

Board Block Diagram

Customization Options

Cnebay have engaged in providing global customers with professional ODM/OEM service of customized stable and

cost-effective electronic products. We can customize total production for the customer including Chassis, Hardware,

Software and Package as below customization options for this product. Contact us at cnebaysales@gmail.com for more detailed info.

Name	Customization Comments	Cnebay Customization
Memory	Change to 256Mbyte/1Gbyte DDR3	Supported
NAND Flash/EMMC	Change to 256Mbyte NAND/8~128Gbyte EMMC	Supported
4G/5G Module	Select the right M2 4G/5G module for your application	Supported
Case	Select the different case material for your application	Supported

Ordering Information

Models	Comments
U5018-01	128Mbyte NAND Flash and 512Mbyte DDR3 RAM

---

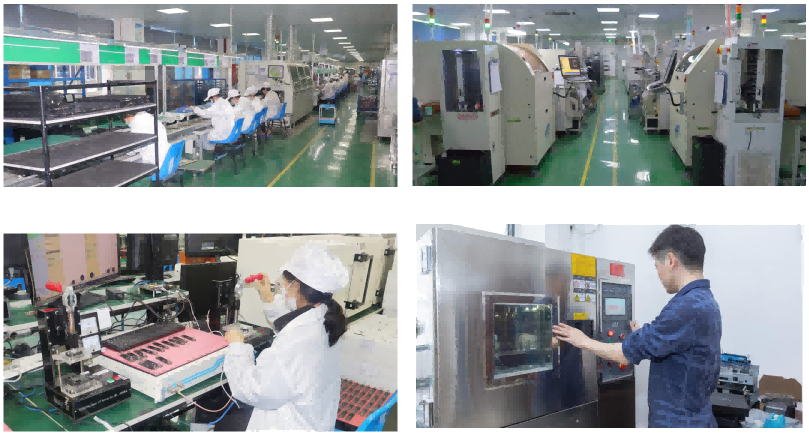

we are Manufacturer & Network Solution Supplier
