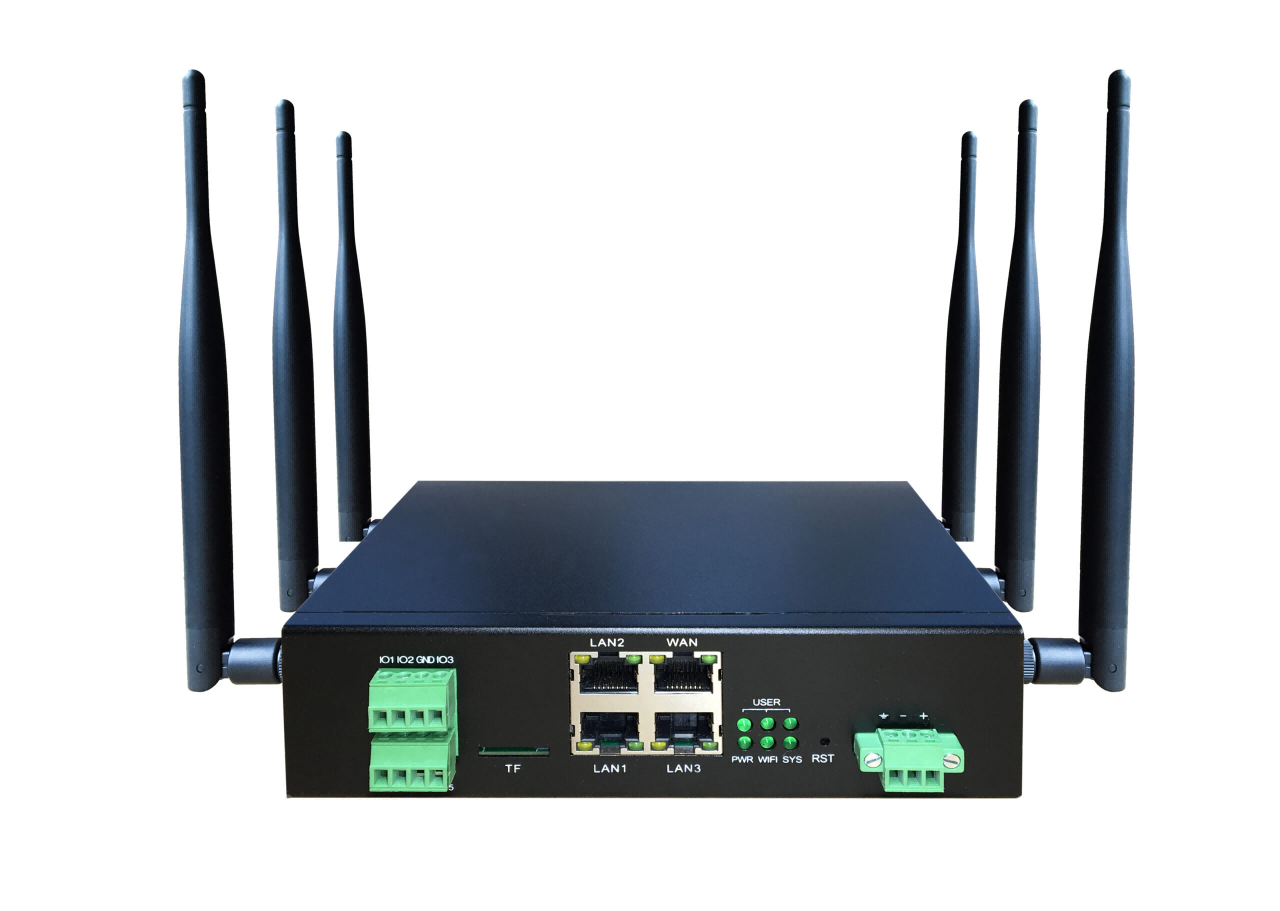

Dual Sim Dual 4G/5G Module Wi-Fi 6 Router_U7621-02-AX
Product Details:
Specifications
| Chipset | CPU: MTK MT7621A dual-core MIPS1004K (880MHz) WIFI6: MTK7975DN+MTK7905DAN |
| System Memory | Default DDR3 256Mbyte (Optional 512Mbyte) |
| Nor Flash | Default 16Mbyte (Optional 8/32/64Mbyte) |
| Expansion | 2x M.2 LTE/5G Module with a SIM card 1x RS485/RS232/GPIO connector 1x TF Card Slot |
| Wireless | MU-MIMO 802.11a/b/g/n/ac/ax WiFi 6 2.4GHz 2T2R 574Mbps, B mode@21dBm(Max) 5.8GHz 2T2R 1201Mbps, A mode@20dBm(Max) |
| Wired Interface | 4x Gigabit 1*WAN+3*LAN |
| Reset Button | 1x Factory Restore Button (GPIO) |
| DC Power | 1x PWR 9-36V DC |
| Power Consumption | 10W(Max), without Expansion 24W(Max) in full range for 1x LTE/5G module 34W(Max), in full range for 2x LTE/5G module |
| Software | MTK OpenWrt which includes Uboot, Kernel, Driver and Tool Chain Normal OpenWrt |
| Environmental | Temperature: Operating: 0ºC to 50ºC, Storage: -40ºC to 90ºC Humidity (non-condensing): Operating: 5% to 95%, Storage: Max. 95% |
| Case | Material: Iron, Dimensions: 160×117.6×45.2mm |

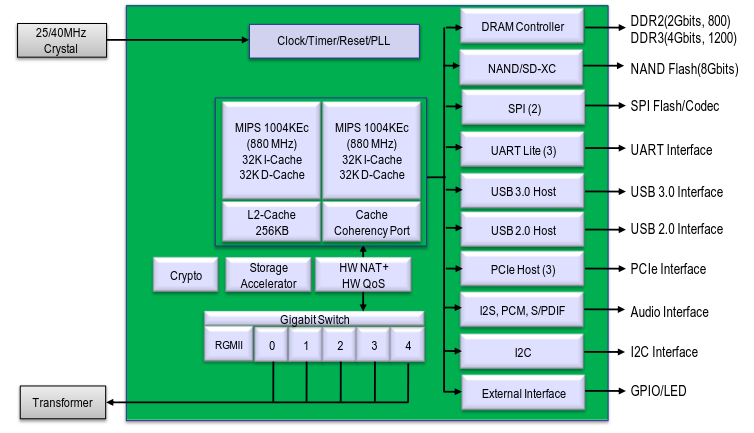

MT7621 Block Diagram

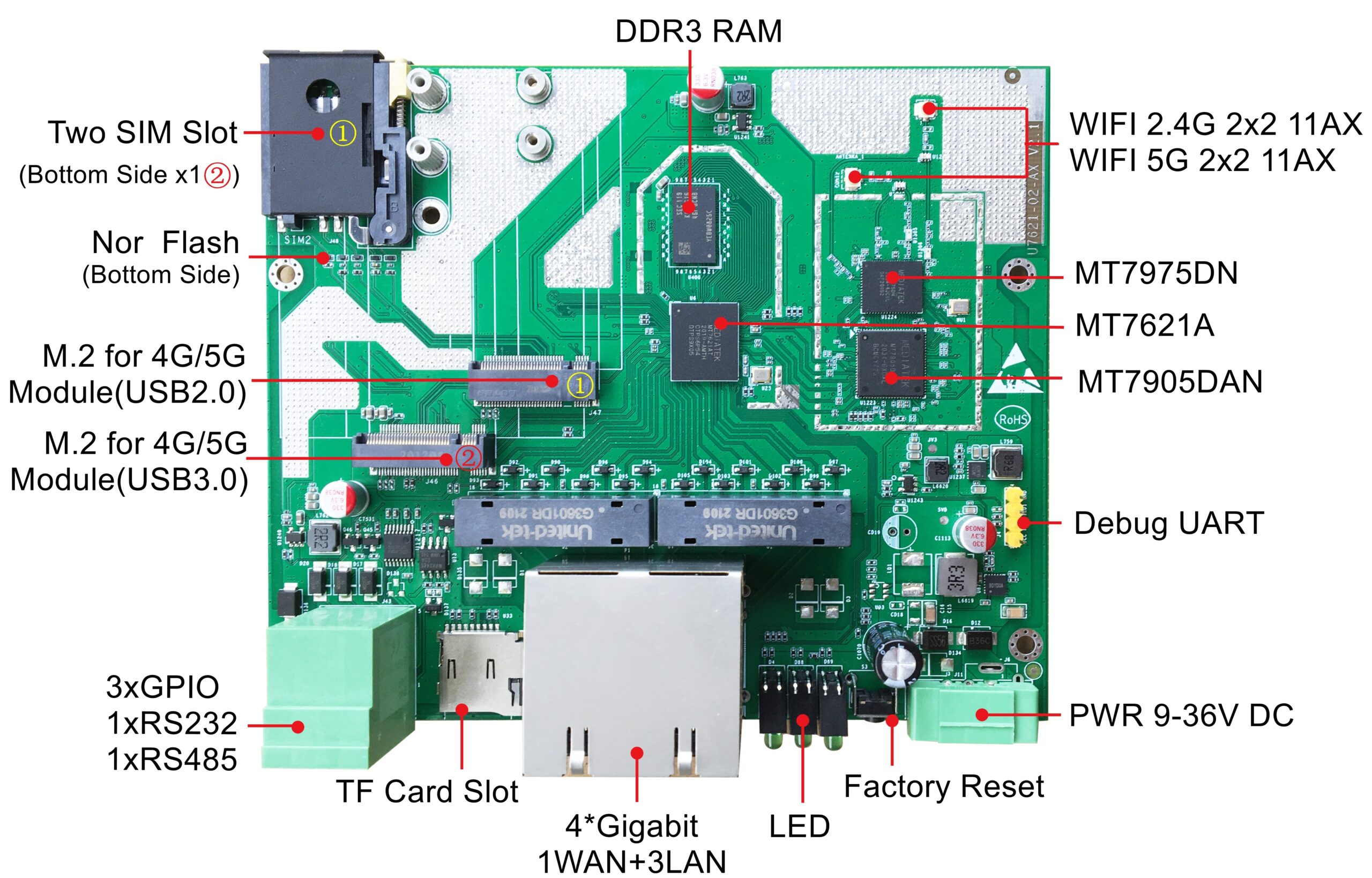

Board Block Diagram
Customization Options
Cnebay have engaged in providing global customers with professional ODM/OEM service of customized stable and
cost-effective electronic products. We can customize total production for the customer including Chassis, Hardware,
Software and Package as below customization options for this product. Contact us at cnebaysales@gmail.com for more detailed info.
| Name | Customization Comments | Cnebay Customization |
| Memory | Change to 512Mbyte DDR3 | Supported |
| Nor Flash | Change to 8/32/64Mbyte | Supported |
| LTE/5G Module | Select the right M2 LTE/5G module for your application | Supported |
| Case | Select the different case material for your application | Supported |
Ordering Information
| Models | Comments |
| U7621-02–AX | 16Mbyte Nor Flash and 256Mbyte DDR3 RAM |
| U7621-02-AX–H | 16Mbyte Nor Flash and 256Mbyte DDR3 RAM |
| BLANK: Without WIFI6 | |
| AX: With WIFI6 | |
| BLANK: Normal power input range (9-18V) | |
| H: Wide power input range(9-40V) |

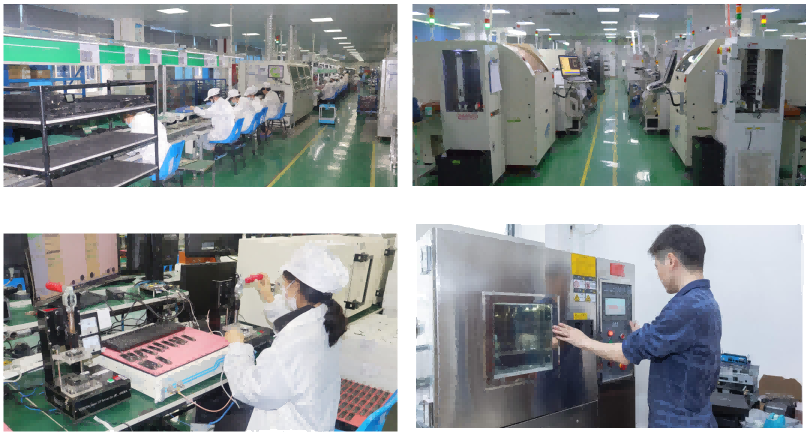

we are Manufacturer & Network Solution Supplier
