Product Details:

Specifications

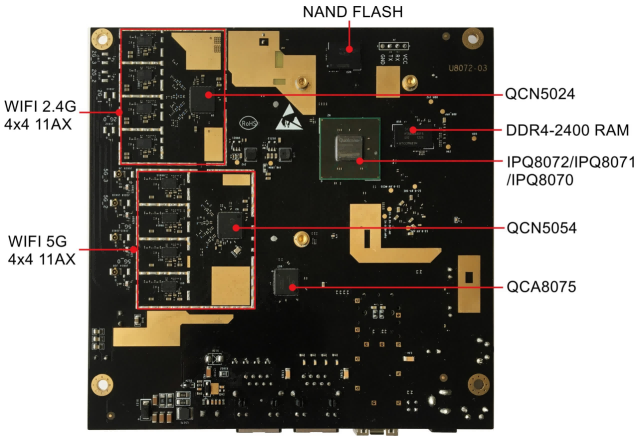

Chipset	CPU: Qualcomm IPQ8072A(Optional IPQ8071/IPQ8070) 2.4GHz AX Chip: Qualcomm 4X4; SINGLE-BAND; 802.11AX QCN5024 5GHz AX Chip: Qualcomm 4X4; SINGLE-BAND; 802.11AX QCN5054 Ethernet 5 Giga port switch: Qualcomm QCA8075 Power management: PMP8074
System Memory	Default DDR4-2400 1Gbyte (Optional 512Mbyte)
Flash	Default NOR Flash 8Mbyte and NAND Flash 256Mbyte (Optional Nand 128Mbyte)

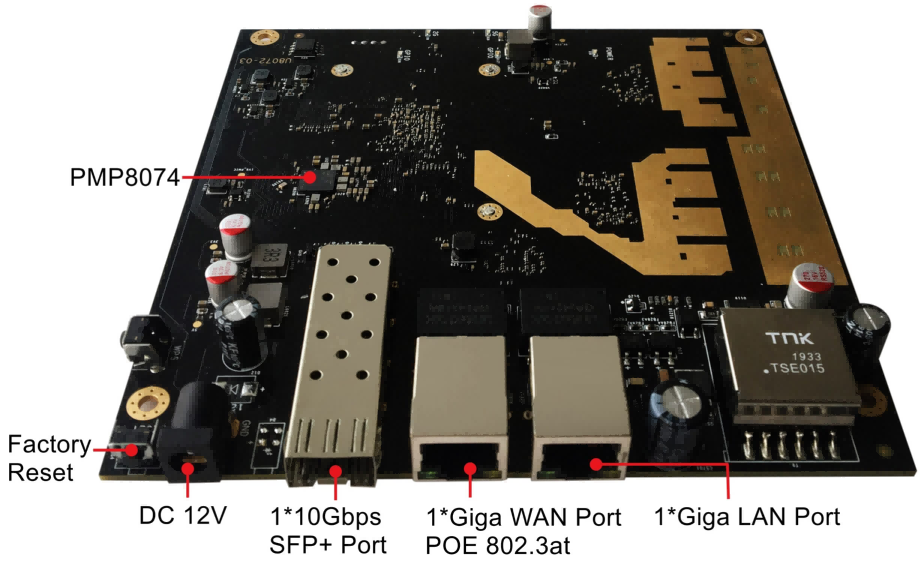

Expansion	1x 10G SFP Slot
Wireless	MU-MIMO 802.11a/b/g/n/ac/ax WiFi 6 2.4GHz 4T4R 1200Mbps, B mode@25dBm(Max) 5.8GHz 4T4R 2400Mbps, A mode@24dBm(Max)
Wired Interface	1* WAN Giga with POE PD 25W Support (802.3at & af standard) 1* LAN Giga Ethernet RJ45 Port
Reset Button	1x Factory Restore Button (GPIO)
DC Power	1x DC Jack Connector (Default 12V@2A)
Power Consumption	20W(Max), 12V@2A in full range
Software	Qualcomm QSDK which includes Uboot, Kernel and Tool Chain
Environmental	Temperature: Operating: 0ºC to 50ºC, Storage: -40ºC to 90ºC Humidity (non-condensing): Operating: 5% to 95%, Storage: Max. 95%
Case	Material: Aluminium Alloy, Dimensions: 220x220x35mm (±2mm)

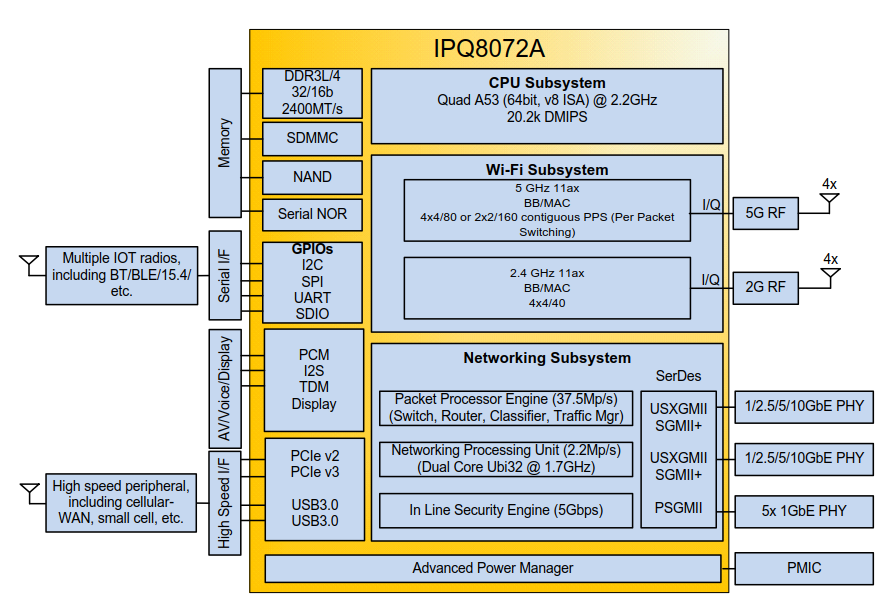

IPQ8072 Block Diagram

Board Block Diagram

Customization Options

Cnebay have engaged in providing global customers with professional ODM/OEM service of customized stable and

cost-effective electronic products. We can customize total production for the customer including Chassis, Hardware,

Software and Package as below customization options for this product. Contact us at cnebaysales@gmail.com for more detailed info.

Name	Customization Comments	Cnebay Customization
Memory	Change to 512Mbyte	Supported
Nand Flash	Change to 128Mbyte NAND	Supported
Case	Select the different case material for your application	Supported

Ordering Information

Models	Comments
U8072-03	256Mbyte NAND Flash and 1GByte DDR4 RAM

---
